Technical Parameters
| Model | YA-D5-11 |
| Size(L*W*H) | 2200*990*450mm(86.6″ x 39″ x 17.7″) |
| Recommended mattress size | 1950*900mm(76.7″ – 35.4″ ) |
| High-Low: | 450-770mm(17.7″ – 30.3″ ) |
| Back section adjustable | 0° to 75° |
| Knee section adjustable | 0° to 40° |
| Trendelenburg | 0° to 12° |
| Reverse trendelenburg | 0° to 12° |
| Safe working load | 225kg（496 Ibs） |

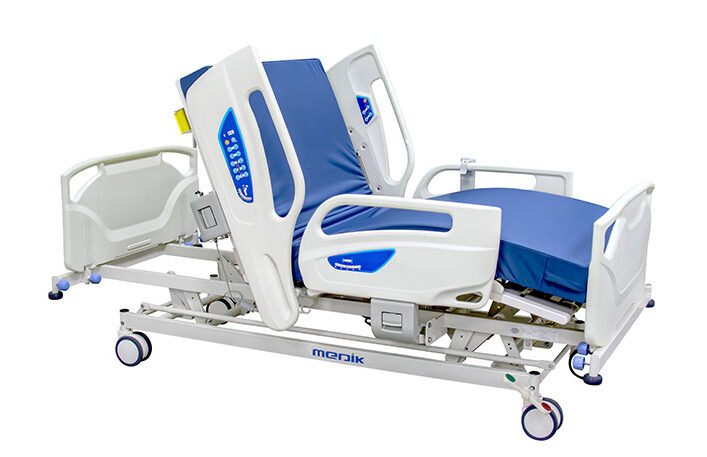

YA-D5-11 Electric hospital bed 5 functions with CPR Function
Placing particular emphasis on safety, the YA-D5-11 electric bed is designed to mitigate accidents. In addition, the beds are also designed for usability, easy cleaning, and easy maintenance
Features
- Four split side rails, drop down
- Hand remote control
- Detachable head/footboard with easy lock
- Central brake system with a wheel diameter of 125mm
- Bumper caster on four corners
- Auto-counter to prevent the patient from sliding onto the foot end
- ABS articulated soft joint for the platform
- With an angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)
- Manual CPR on both sides
- Incorporated railing control(optional)
- Weighing scale with LED display (optional)
YA-D5-1 Fully Electric Hospital Bed
Fully electric operation type ICU bed designed to take care of the patient in ICU area
Main Features
- Bed Frame Electrophoresis and powder coating
- Bed platform removable ABS platform
- Motor Quiet and robust electric actuators provide reliable operation
- Build-in controller can control all electrically operated functions and movements
- 4 ABS side rails with Tuck-away model, collapsible below the bed surface
- Head and Footboard ABS material, detachable
- Central brake system with a wheel diameter of 125mm
- Hand remote control – Patient control inner constructed in side rails
- Nurse control located in the footboard, with side rail control and a functions lockout feature – Auto-counter to provide the patient from sliding onto foot end
- Electric CPR function control by one single button on the side rails
Manual CP
Specifications
- Overall Size: 2200*980 *450-750mm
- Safe Working Load: 220kg
- Functions: Backrest, Footrest, High-Low, Trendelenburg, Revere- Trendelenburg, CPR
- Motor: Jiechang motor

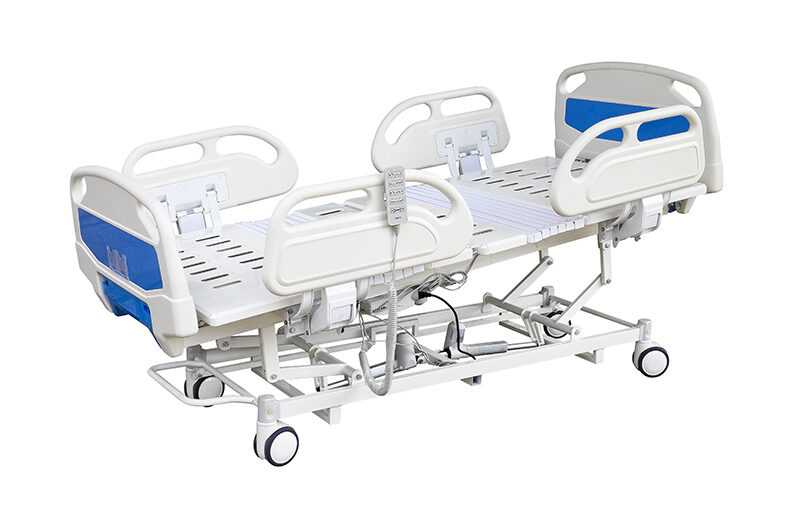

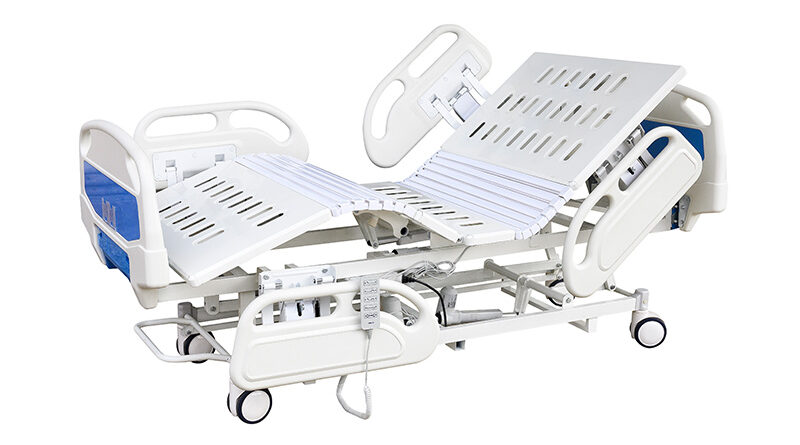

YA-D5-10 Electric Adjustable Hospital Bed
The adjustment part is designed with a soft connection to improve the comfort of the patient. Central lock, the detachable headboard and footboard of the bed greatly provide convenience for medical personnel
Main features
- Four split side rail, drop down under the bed platform
- Hand remote control
- Detachable head/footboard with easy lock
- With articulated ABS soft joint between different platform sections
- Central brake system with a wheel diameter of 125mm
- Auto-counter to provide the patient from sliding onto foot end
- Manual CPR on both sides(optional)

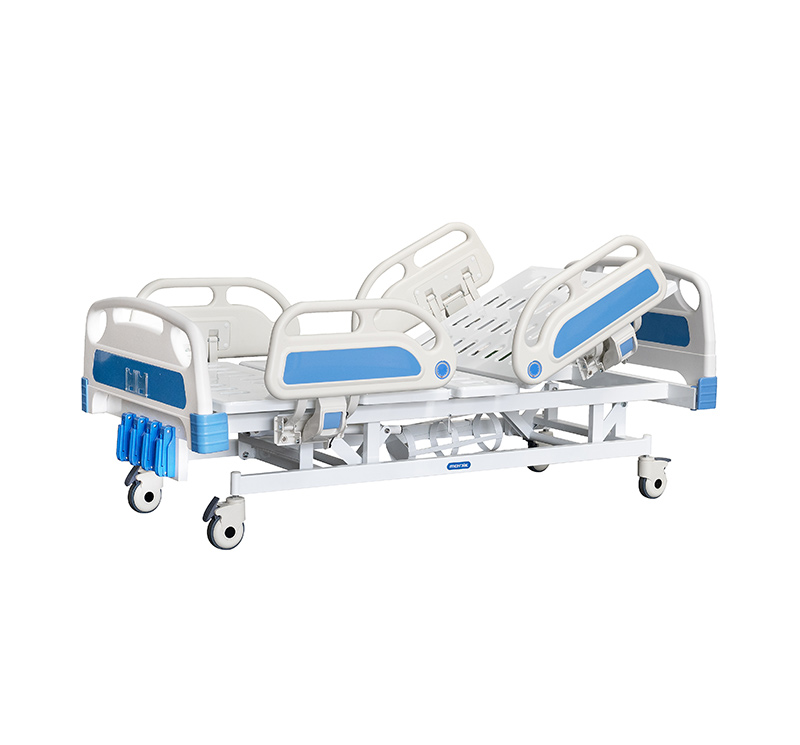

YA-M5-6 5-Function Manual Adjustable Hospital Bed
Specifications
Safe Working Load: 200kg
Functions: Backrest, Footrest adjustable, High-low, Trendelenburg, Revere-Tren
- Bed Frame electrophoresis and powder coating
- MS perforated platform with ventilation hole, molded
- Four split side rail, drop down under the bed platform
- Head and Footboard Detachable head/footboard with easy lock
- 4 pieces foldable hand cranks – urine bag hooks on both sides
- With angle indicator embedded in the railing
- Oxygen bottle holder and IV pole

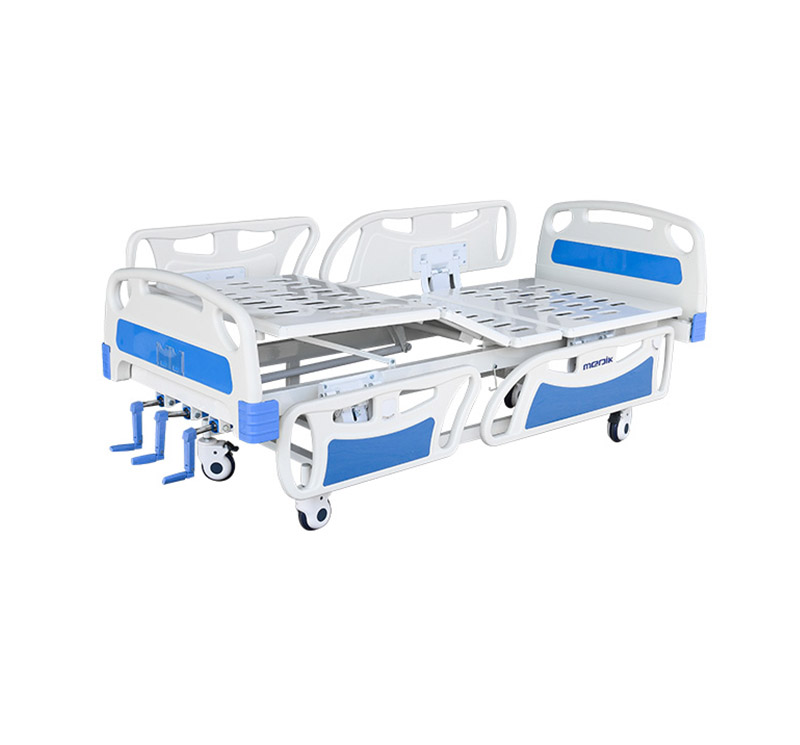

YA-M3-3 3-Function Manual Adjustable Hospital Bed
With three cranks for head, foot, and Trendelenburg adjustment, it delivers versatile support and comfort for patient care
Specifications
Overall Size: 2160*960*500mm
Safe Working Load: 175kg
Function: Back section, Foot section, Trendelenburg
Main Feature
- Backrest, Footrest and Trendelenburg movements by 3 cranks
- Epoxy coated mild steel bed frame
- 4 section bed board
- ABS side rails with angle indicator
- ABS head and foot board with holes for moving the bed easily
- Dia125mm noiseless castors ,all with individual brakes
- Bumper castors on 4 corners for protection

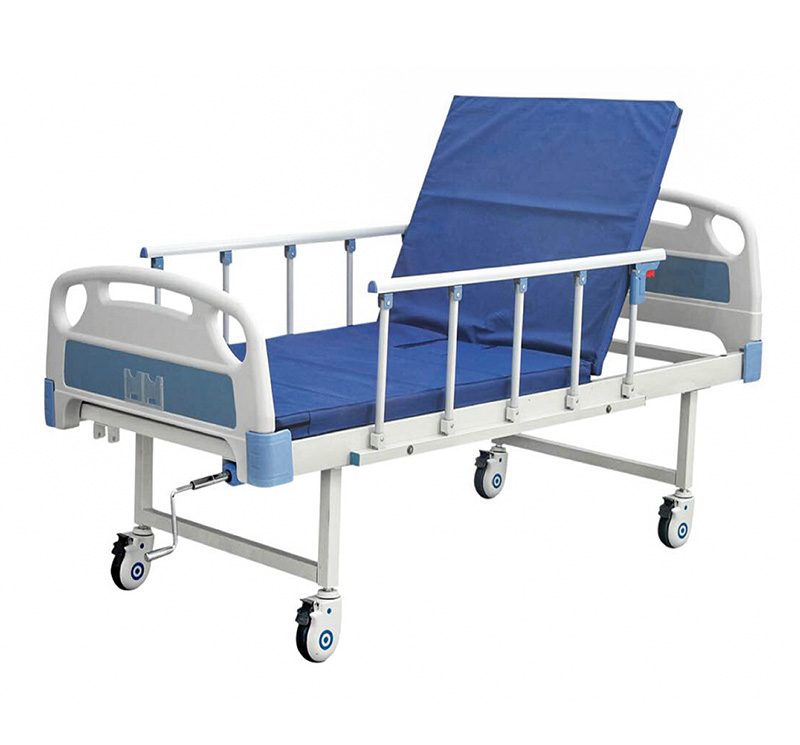

YA-M1-1 Single Crank Hospital Bed
It features a smooth manual crank system for backrest adjustment and an independent caster locking system for safety
Specifications
Overall Size: 2000*900*530mm
Safe Working Load: 250kg
Functions: Back section adjustable
Main features
- Epoxy coated cold-rolled steel bed platform and frame
- Head & Footboard: ABS, detachable
- Side rails: 2pcs aluminium alloy, collapsible
- Castor: diameter of 125mm, two with brakes
YA-M2-4 Two Crank Manual Hospital Bed
It features a dual crank system that allows caregivers to easily adjust the backrest and foot section, improving patient comfort and positioning
Specification
Overall Size: 2000*900 *530mm
Safe Working Load: 180kg
Functions: Back section adjustable, Foot section adjustable
Main features
- Epoxy coated cold-rolled steel bed platform and frame
- Head & Footboard: ABS, detachable
- Side rails: 2pcs, PP, collapsible
- Castor: diameter of 125mm, two with brakes

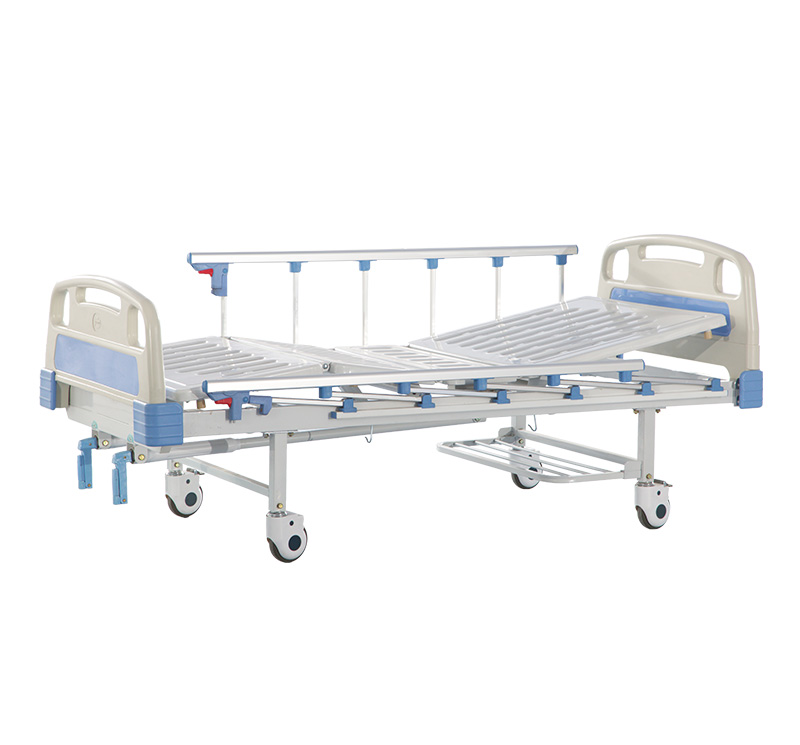

YA-M2-3 Two Function Manual Hospital Bed
The YA-M2-3 two cranks manual hospital bed is a manual crank system offering function of back and knee up & down. Moreover, the medical adjustable bed is an independent castor locking system. Once the nurse steps on the castor braking pedal, the whole medical patient bed will be motionless
Main features
- Electrophoresis and powder coating
- Head & Footboard: ABS, detachable
- Side rails: 2pcs, Aluminum alloy, collapsible
- Castor: diameter of 125mm, two with brakes
- I.V.pole
Specification
| Model | YA-M2-3 |
| Overall size | 2160*960*550mm |
| Lying size | 1950*870mm |
| Back section up/down | 0-75° |
| Foot section up/down | 0-40° |
| Fixed height | 550mm |
| Safe loading capacity | 180kg |

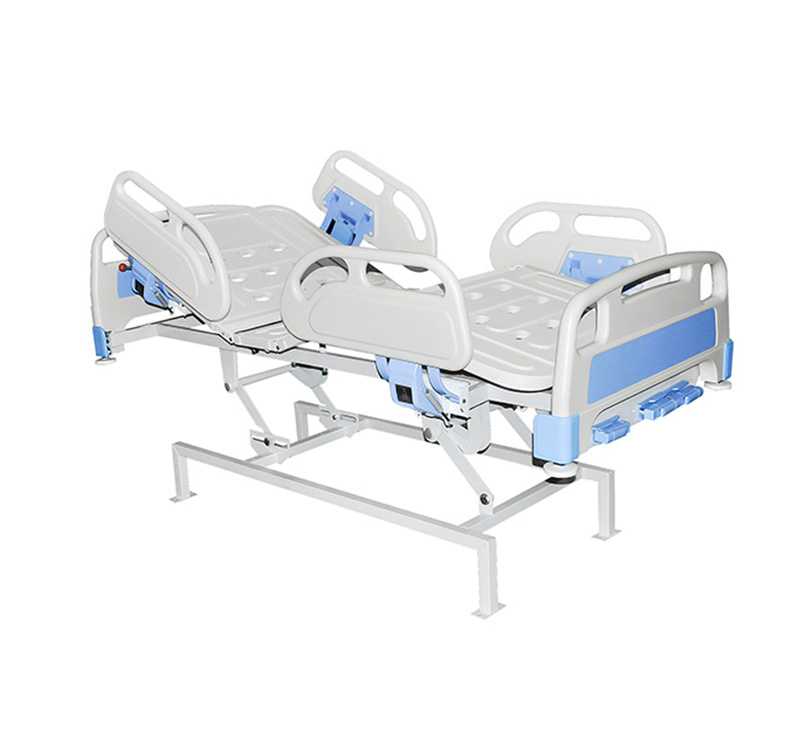

YA-M5-7 Psychiatric Hospital Bed For Hospital
The YA-M5-7 psychiatric hospital bed is specially designed for restraint psychiatric patients. It is fixed to floor to ensure the safety for patients and caregiver
Main Feature
- ABS head and footboard
- Bumper castors on 4 corners for protection
- Four split side rails, drop down
- Gas spring for the back section adjustment and CPR function
- Each segment of the mattress base has holes for restraint belts
- Durable mattress base made from pressed steel
- The psychiatric bed is fixed to the floor and can not be move
Specifications
Height adjustable 500-750mm (19.6″ – 29.5″) Back section adjustable 0-75° Foot section adjustable 0-40° Trendelenburg 0-12° Reverse-Trendelenburg 0-12° Loading capacity 225kg（495 Ibs）

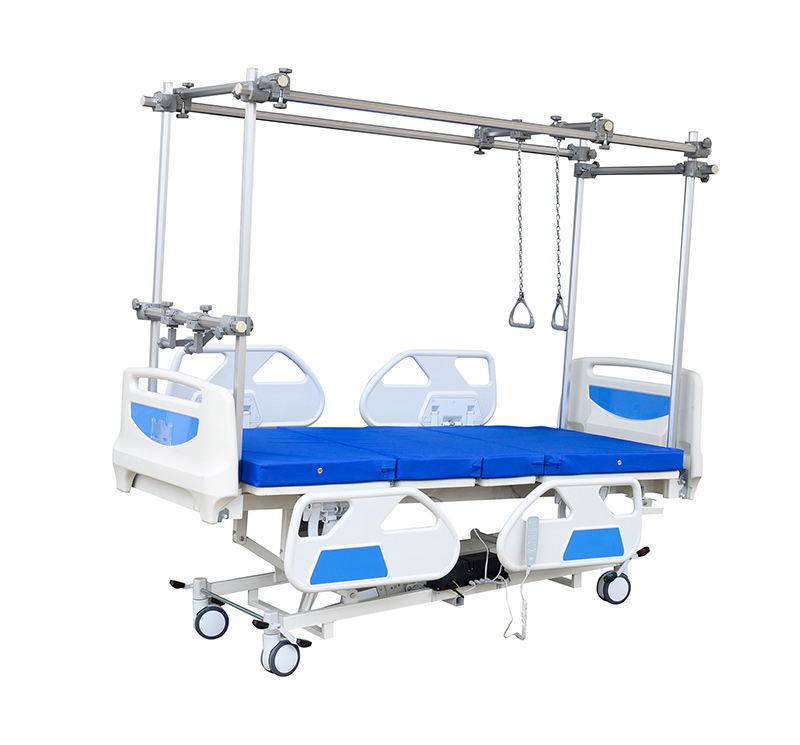

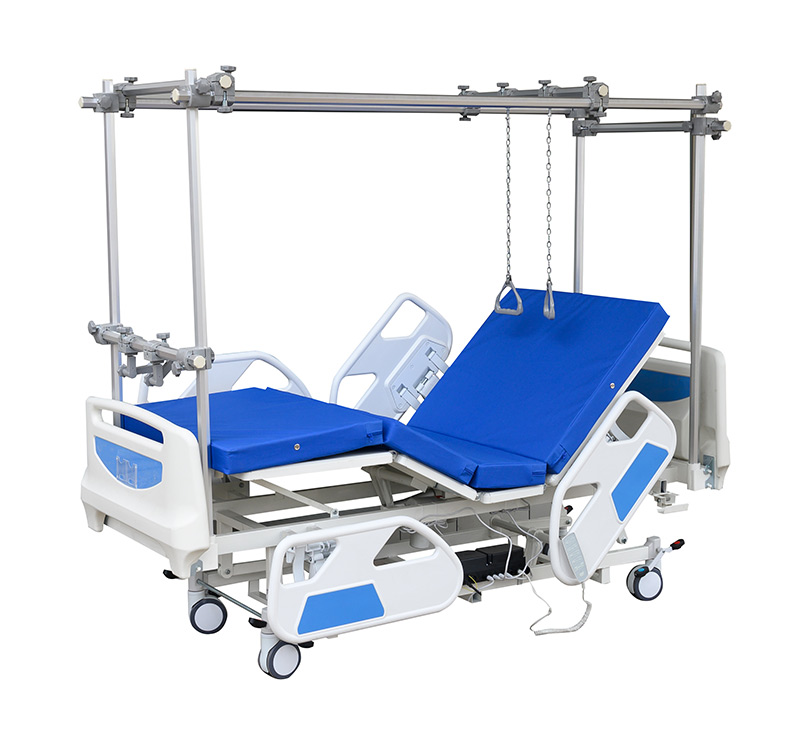

YA-D5-9 Electric Orthopedic Traction Bed
Designed for diagnosis, orthopedic surgeries, correction, and traumatic treatment of patients with disorders of the bones, joints, muscles, ligaments, and tendons
Main feature
- Detachable head/footboard with easy lock
- Manual CPR on both sides(optional)
- Central brake system on four corner
- Hand remote control
- Four split side rail, drop down under the bed platform
- Leg and hand traction frame
| Model | YA-D5-9 |
| Size | 2270*1060*450mm (89.3″ x 41.7″ x 17.7″) |
| Backrest adjustment | 0-80° |
| Footrest adjustment | 0-40° |
| Height adjustment | 450-725mm (17.7″ – 28.5″ ) |
| Trendeleburg | 0-12° |
| Revere- Trendelenburg | 0-12° |
| Loading capacity | 205kg（451 Ibs） |

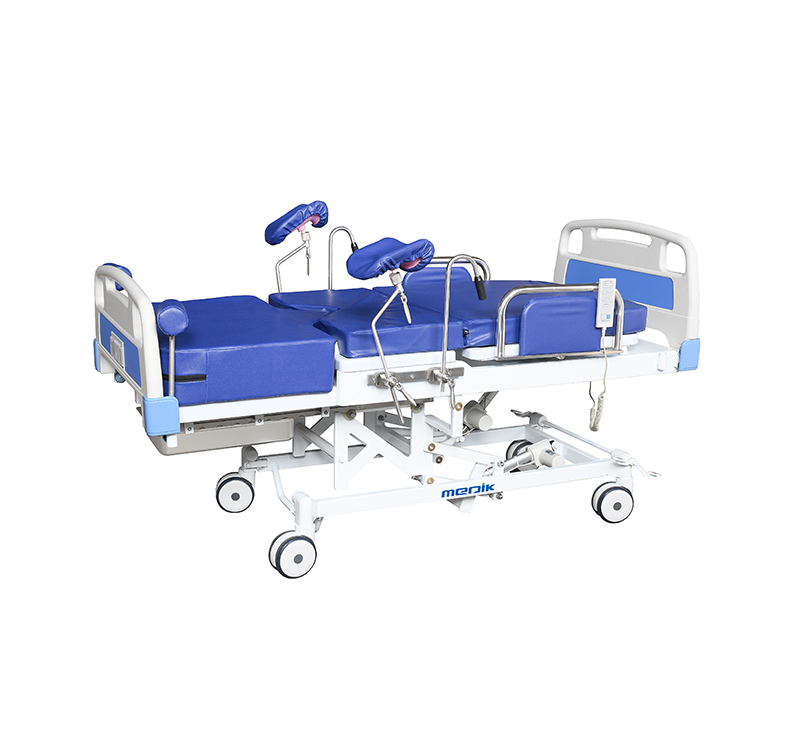

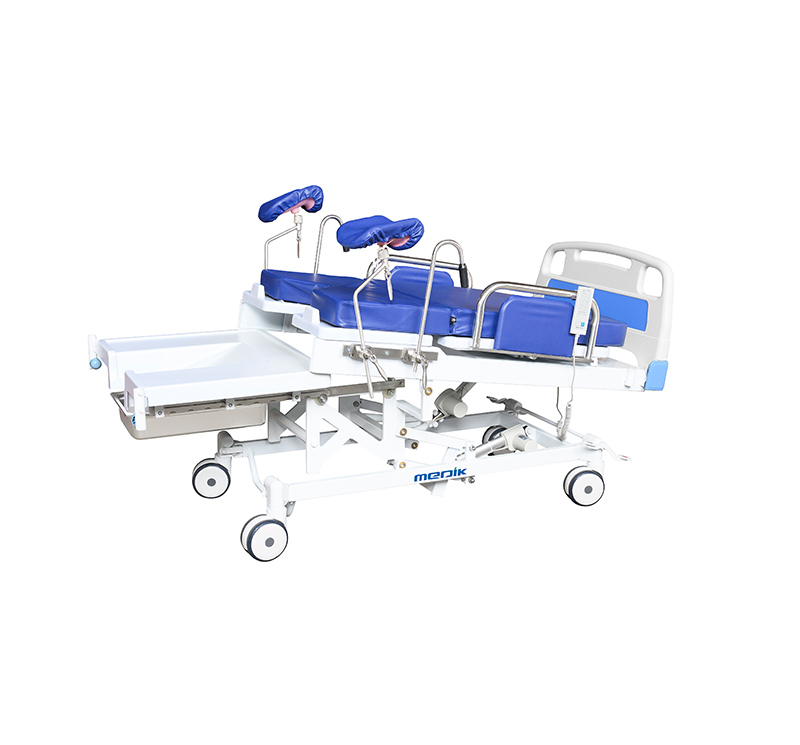

MC-D02 Multi-Function Obstetric Bed
Designed to ensure mothers have the best possible birthing experiences
It is comfortable and equipped with every essential feature and designed with all labor positions in mind
Main features:
- Designed for whole procedure of baby delivery, pre-on-after delivery
- Bed can be easily converted into a delivery table with simple operations
- Heavy duty railing with hand ring for grabbing
- Removable foot section
- Central brake system
- Hand remote control
- Battery backup
Model MC-D02 Bed’s length 2050mm ( 80.7″ ) Bed’s length in chair position 1450mm ( 57″ ) Maximum width 980 mm (38.5″ ) Bed frame width 870mm (34.2″ ) Height adjustment 580mm-950mm (22.8″~37.5″ ) Backrest inclination angle 70° Trendelenburg 12° Reverse-trendelenburg 7° Loading capacity 230kg (500lb) Gynecological bowl capacity 14L
