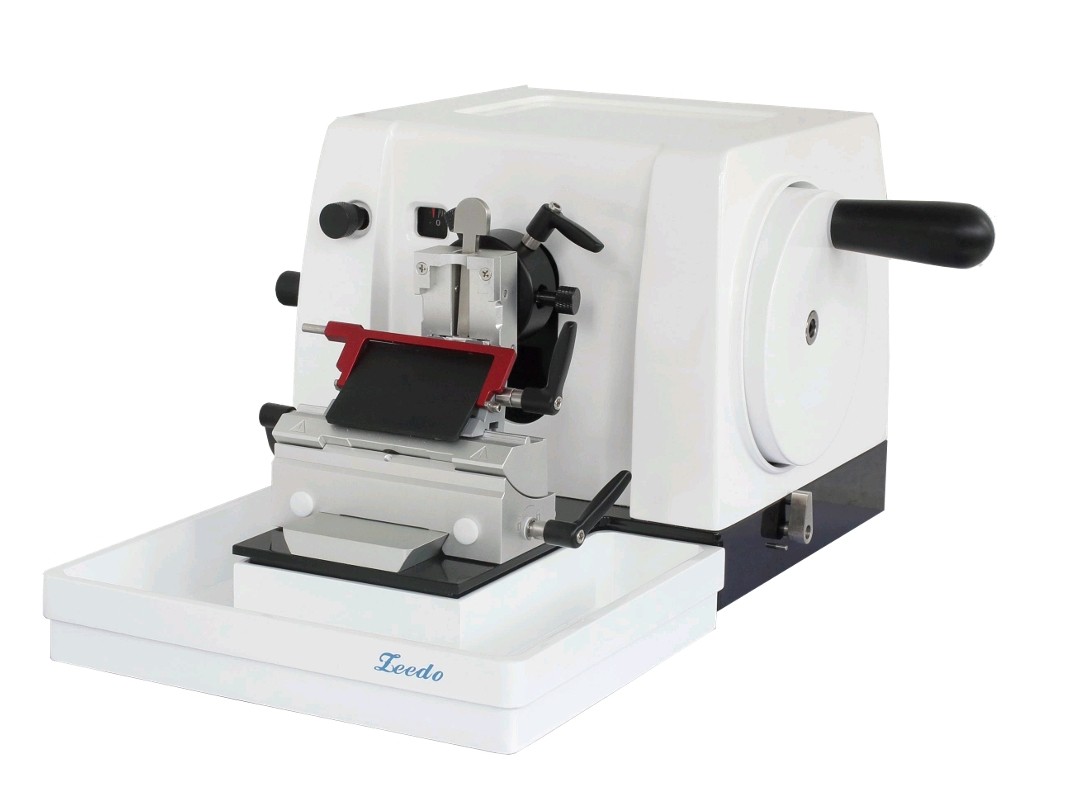

Manual Rotary Microtome
Features:
1.It have clipper –built case , the user can put blade , wax block ,or other consumable one the top of case . it is easy .
2.It do not need to lubricate and maintain the microtome frequently .
3.The hand wheel in the right can be locked in any position , and the handle can be locked in highest position , it is double safe for changing blade or tissue block .
4.The specimen Orienting system: axes X and Y 8°, axis 180°.
5.It adopt the special blade holder , it is more safe and convenient to use the disposable blade directly . it also can to longer the user life of disposable blade
Main Technical Data:
1.Slice thickness range: 0μm～60μm
- Section thickness setting : 0-2 um in 0.5 um –increments
2-10um in 1 um-increments
10-20 um in 2 um-increments
20-60um in 5 um-increments
3.Horizontal specimen stroke :20 mm
4.Vertical specimen stroke : 50mm
5.Slip precision: ± 5%
6.Maximal slice section: 50 × 45mm
7.Specimen adjustment direction: horizontal 8°, vertical 8°, rotating 360°
8.Movement range of blade holder base: front and back ±25mm, left and right ±25mm
- Blade holderangle 0~10°
